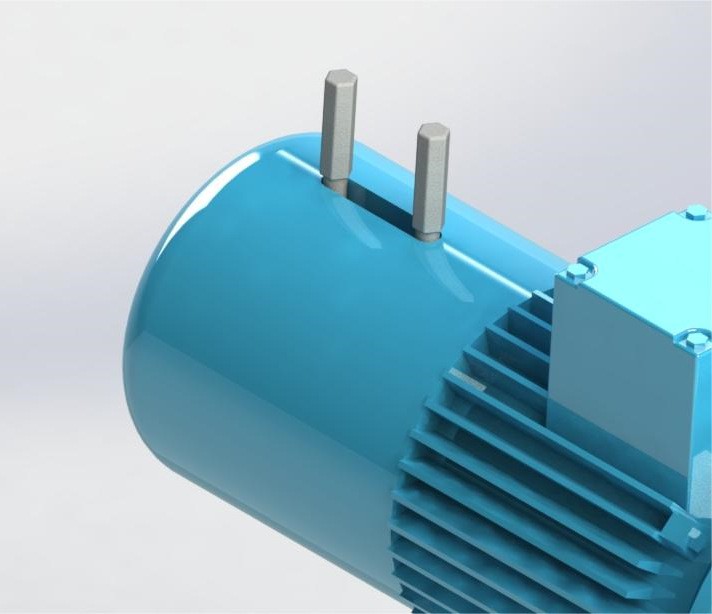

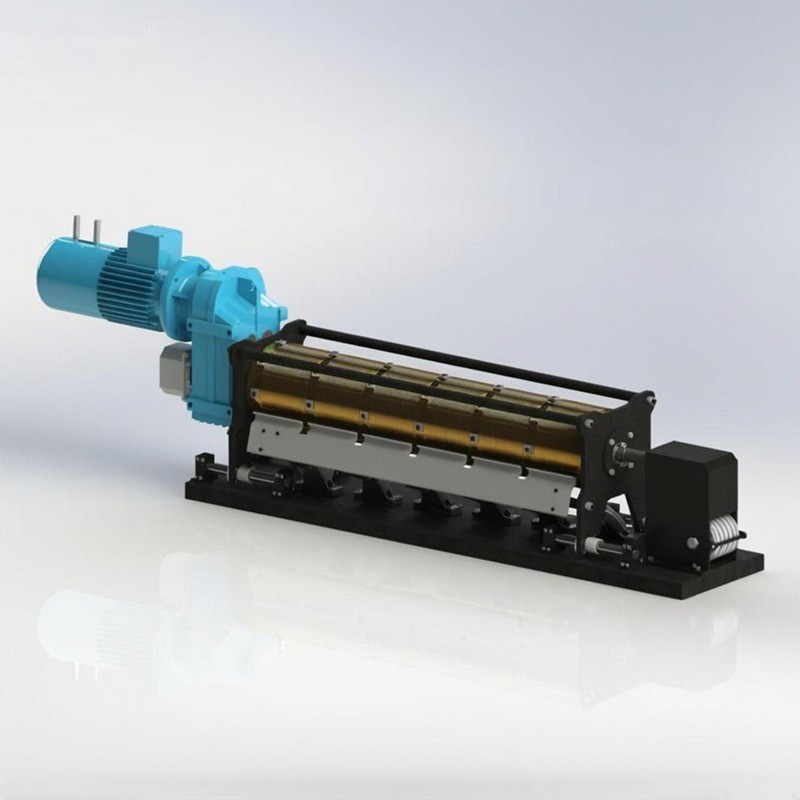

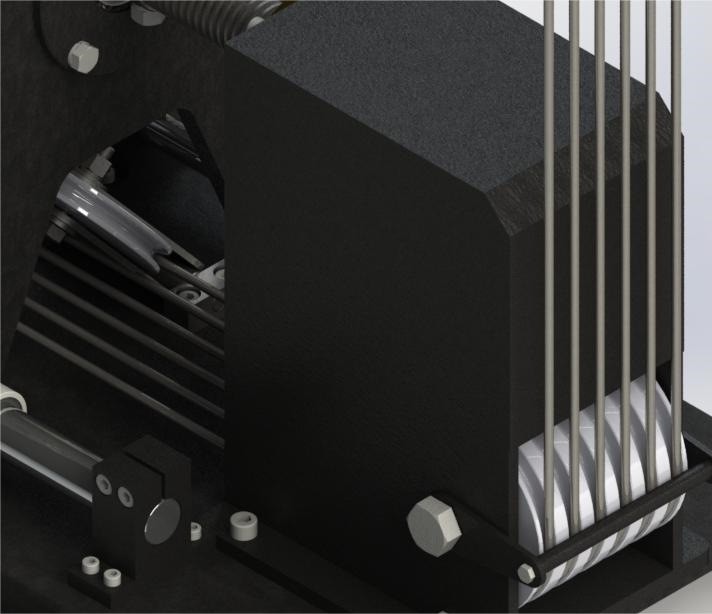

Stage self winding rope hoist is an electric hoisting system that automatically manages the wire rope to ensure smooth lifting and lowering. The stage self winding rope hoist is an additional function of self winding ropes on the basis of the stage boom machine. It consists of dual brake motors, reducers, drums, load-bearing guide rails, screw rods, disorderly rope detection, output corner wheels, limit positions, and other parts. The stage self winding rope hoist is a modern stage-specific lifting equipment, widely used in theaters, lecture halls, multi-function halls, and studios. It mainly suspends curtains, lights, sets, and props to achieve rapid scene changes and stage effect transitions.
Advantages
Compared to conventional hoists, the stage self winding rope hoist offers the advantage of automatically laying the rope, thereby preventing tangles, jams, or wear. It features a longer service life, smoother operation, enhanced safety, and lower maintenance costs.
Technical Specifications
|
Model |
HBZPS-250~2000 |
|
Load |
2.5~20KN |
|
Distance |
≤30m |
|
Speed |
≤1.8m/s |
|
Application wire rope diameter |
4.2~12mm |
|
Hanging point number |
2~6 Lifting point |
|
Limiting method |
Cam mechanical limit |
|
Equipment size |
L1800mm*W650mm*H500mm |
Installation Method

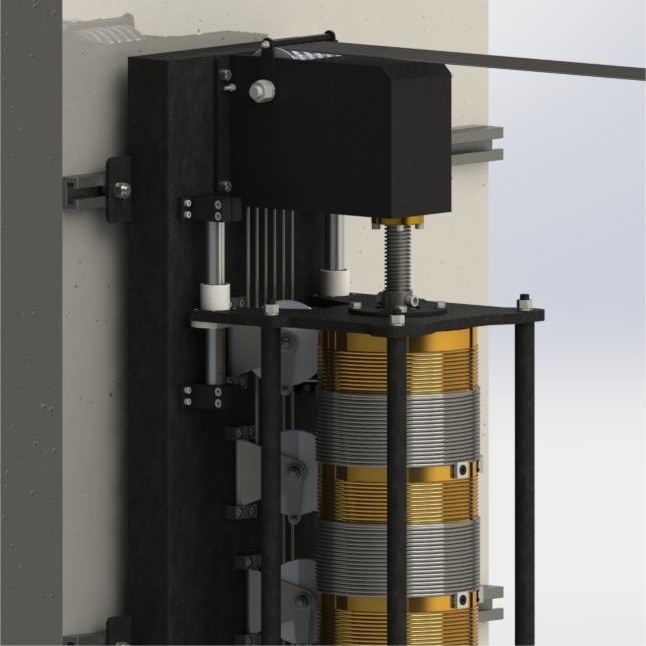

The base is equipped with mounting holes and can be used for both horizontal and vertical positions.
Advantages

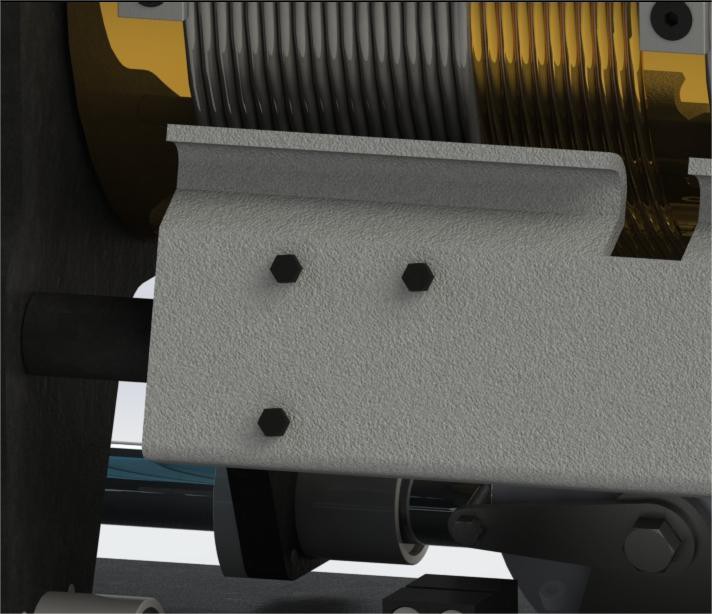

Equipped with an independently developed intelligent wire rope arrangement system, no manual intervention is required. The wire ropes are automatically arranged in an orderly manner, completely solving the problems of disordered ropes, jumping ropes and entanglement in traditional boom cranes, prolonging the service life of the wire ropes, and reducing the annual maintenance costs.
Install the Adaptation Scenario
The structure is compact and the installation is flexible. No additional space for rope arrangement is required. It can be adapted to various scenarios such as theaters, broadcasting studios, multi-function halls, and cultural and tourism venues. It can be compatible with different floor heights and layouts, and the installation efficiency has been significantly improved.
Customization And After-Sales Service
Supports full parameter customization, provides design and installation guidance; 24-hour dedicated personnel connection, completely eliminating customers' concerns after use.
