Non-Custom Stage Equipment for Standard Stage Applications
Our non-custom stage equipment range covers revolving stages, stage lifting equipment, curtain hoists, and supporting stage mechanisms. The range includes 1-meter and 2-meter revolving stages, a self-raising hoist boom, wall-mounted stages, and curtain operating systems.
For buyers sourcing standardized stage equipment, these products provide defined structural configurations and published specifications for initial equipment selection. The revolving stages feature modular diameter expansion, while the lifting and curtain systems cover different movement requirements across theaters, multifunction halls, exhibition venues, and performance spaces.
-

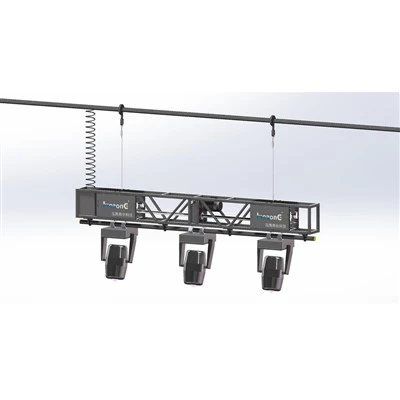

Self Raising Hoist BoomThis self-lifting hanger rod is driven by a driver to operate the dual-side rope drums for winding and unwinding steel wires, enabling vertical movement. Equipped with automatic rope arranging,...read more
-

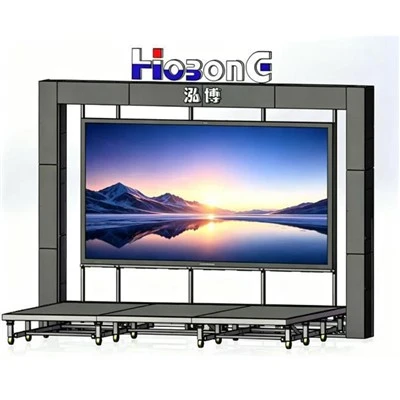

Wall Mounted StageThis wall-mounted stage adopts single-drive synchronous chain transmission structure, and realizes vertical lifting conversion through linear guides, enabling smooth switching of the platform from...read more
-
Fast Drop Curtain HoistFull curtain machinery is an electric roll-up screen system specifically designed for theaters, performing arts centers, multipurpose halls, conference centers, and large-scale event venues. It...read more
-
Fast Rise Curtain HoistRising curtain machinery (The Fast Lift Roll Screen System) is a professional stage machinery system used in theaters, performing arts centers, multipurpose halls, conference centers, television...read more
-
False ProsceniumMovable proscenium arches (a false proscenium) is a removable or adjustable decorative and structural system installed on the inner side of a theater's main proscenium arch. It is used to alter...read more
-
Auxiliary Stage LiftAn auxiliary lift platform is a supplementary vertical lifting device within a stage machinery system, primarily used in conjunction with the main lift stage to facilitate stage configuration...read more
-
Floor Mounted Bi Parting Curtain SystemFloor mounted Bi parting Mechanism is a type of stage machinery supported by ground-level tracks that operates in both directions. It is widely used in theaters, broadcast studios, multipurpose...read more
-
Compensating Stage LiftFilling in platform (a compensating lift) is a stage device that uses an electric drive to move vertically. It can automatically adjust the platform’s height according to stage production...read more
-
2 Meter Revolving StageThis 2-meter-diameter rotating stage features a modular, expandable design that allows the platform diameter to be extended to 2.5 meters to accommodate various performance requirements. The...read more
-
1 Meter Revolving StageThis 1-meter finished rotating stage is designed with a modular expandable structure, allowing the platform diameter to be extended up to 1.5 meters according to different performance...read more
Standard Stage Equipment Range
Our Non-custom category includes the following equipment:
| Product | Main Function |
|---|---|
| 1 Meter Revolving Stage | Compact rotating platform with expandable diameter |
| 2 Meter Revolving Stage | Rotating platform with modular diameter expansion |
| Self Raising Hoist Boom | Vertical movement of suspended stage equipment |
| Wall Mounted Stage | Converts between horizontal and vertical platform positions |
| Fast Drop Curtain Hoist | Motorized curtain or screen lowering system |
| Fast Rise Curtain Hoist | Motorized curtain and screen lifting system |
| False Proscenium | Adjustable stage opening structure |
| Auxiliary Stage Lift | Supplementary vertical lifting platform |
| Floor Mounted Bi Parting Curtain System | Synchronized opening and closing of stage scenery |
| Compensating Stage Lift | Adjusts platform height to compensate for stage level differences |
Revolving Stage Sizes and Drive Configurations
Two revolving stage sizes are listed in this product range. Both use servo motor drive, worm gear reduction, gear transmission, and a conductive slip ring for power transmission during rotation.
| Specification | 1 Meter Revolving Stage | 2 Meter Revolving Stage |
|---|---|---|
| Standard platform diameter | 1 m | 2 m |
| Expandable diameter | Up to 1.5 m | Up to 2.5 m |
| Drive motor | Servo motor | Servo motor |
| Reduction mechanism | Worm gear reducer | Worm gear reducer |
| Transmission | Gear-driven | Gear-driven |
| Power transmission during rotation | Conductive slip ring | Conductive slip ring |
| Cable access | Concealed double-opening floor socket | Concealed double-opening floor socket |
The 1-meter model is suitable when a smaller rotating platform is required, while the 2-meter model provides a larger standard platform area. Both designs allow diameter expansion within their published configurations.
The conductive slip ring supports power transmission during continuous platform rotation. Concealed floor sockets provide cable access without leaving exposed connections across the platform surface.
Lifting and Curtain Equipment Specifications
Different stage movements require different mechanical configurations. The following published specifications help buyers compare the relevant equipment.
| Product | Parameter | Published Specification |
|---|---|---|
| Self Raising Hoist Boom | Boom size | 3 m |
| Self Raising Hoist Boom | Speed | 0.1 m/s |
| Self Raising Hoist Boom | Dead weight | 70 kg |
| Self Raising Hoist Boom | Load | 200 kg |
| Self Raising Hoist Boom | Stroke | 10 m |
| Wall Mounted Stage | Recommended area | 10–80 m² |
| Wall Mounted Stage | Operation time | 60 s |
| Wall Mounted Stage | Static load | 5 kN/m² |
| Wall Mounted Stage | Operating noise | ≤45 dB |
| Fast Drop Curtain Hoist | Typical lowering speed | 0.3–1.5 m/s |
| Fast Drop Curtain Hoist | Positioning error | ±2–5 mm |
| Fast Rise Curtain Hoist | Screen width | 3–30 m |
| Fast Rise Curtain Hoist | Lifting height | 3–25 m |
| Fast Rise Curtain Hoist | Lifting speed | 0.5–2.0 m/s |
| Fast Rise Curtain Hoist | Positioning accuracy | ±2–5 mm |
| Fast Rise Curtain Hoist | Power supply | AC 380 V, 50 Hz, three-phase |
| Fast Rise Curtain Hoist | Protection rating | IP54 |
The self-raising hoist boom uses dual-side wire rope drums, automatic rope arranging, dual braking, and anti-rope-dropping devices. Its published load is 200 kg, with a 10 m stroke.
The wall-mounted stage uses a single-drive synchronous chain transmission structure and linear guides to move the platform between horizontal and vertical positions.
The Fast Drop Curtain Hoist uses a motor-driven roller and control system. Its listed control options include PLC, touchscreen, wireless remote control, DMX512, and central control integration.
The Fast Rise Curtain Hoist uses servo motor or inverter motor drive, with PLC, touchscreen, DMX512, and centralized control integration options.
Mechanical Configurations for Stage Movement
The equipment range also includes mechanisms for stage opening, supplementary lifting, scenery movement, and platform height compensation.
- False Proscenium: Available structural configurations include fixed, manually adjustable, and electrically adjustable proscenium systems. The adjustable versions can change stage opening width and height.
- Auxiliary Stage Lift: Uses an electrically driven lifting platform with a high-strength steel structure, guidance system, drive system, and PLC-based control. It can operate independently or coordinate with other stage equipment.
- Floor Mounted Bi Parting Curtain System: Uses floor tracks, servo motors, gear reducers, and synchronized transmission to move scenery panels or screens in two directions. Its published positioning accuracy is up to ±1 mm.
- Compensating Stage Lift: Uses an electric lifting mechanism to compensate for height differences between adjacent stage platforms. The system can coordinate with lifting stages, revolving stages, and telescoping stages.
These mechanisms serve different functions and should be selected according to the required movement, platform arrangement, and stage equipment configuration.
Manufacturing and Project Support
JIANGSU HONGBO STAGE EQUIPMENT SCIENCE AND TECHNOLOGY CO., LTD. specializes in stage machinery design, manufacturing, and installation.
Our production base covers approximately 7,000 m² and is equipped with specialized production lines, CNC machining centers, and large-scale industrial machining platforms. The company has approximately 20 engineering and management personnel across its technical and operational teams.
Production inspection includes simulated operating tests and monitoring of load, speed, and noise performance. The company also provides engineering support, including technical consultation, equipment selection, design drawings, and electrical wiring diagrams.
For installation support, buyers can receive 3D animated video guidance or arrange professional installation services. Follow-up support is also available to monitor equipment operation after delivery.
Request a Quotation for Non-Custom Stage Equipment
Send us the product name, required quantity, and available technical specifications to request a quotation. For revolving stages, please indicate the required platform diameter. For lifting and curtain equipment, include the required load, stroke, screen dimensions, operating speed, and power supply information where available.
Our team can review the product requirements and confirm the applicable configuration for your project.
