Telescopic Stage

Telescopic Stage

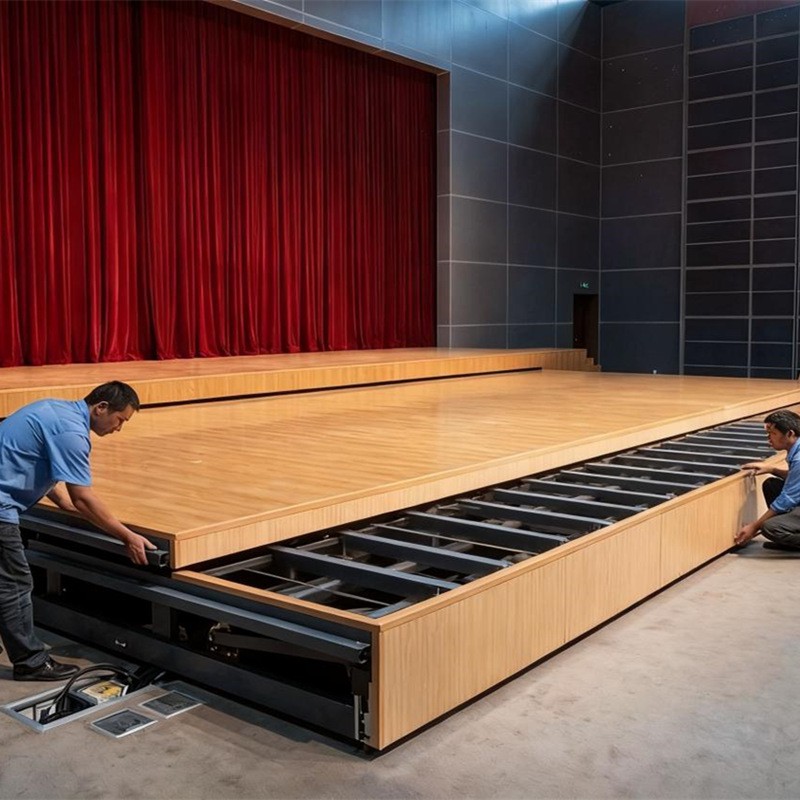

The run out extension platform is a professional mechanical equipment for horizontally extending the stage. It can extend linearly along the front or side edge of the main stage, enabling functions such as expansion of the performance area, interaction of the audience area, and extension of the T-stage.
Send Inquiry
Description

The Telescopic Stage is a professional stage machinery system designed to extend the performance area horizontally. It can extend linearly from the front or side of the main stage, providing additional space for performances, audience interaction, and T-stage or runway configurations.

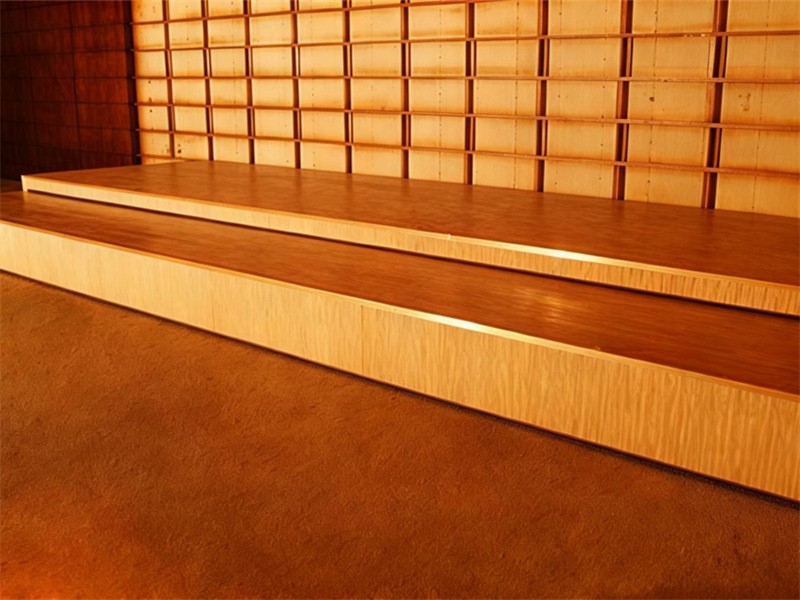

After extension or retraction, the platform is designed to align with the main stage surface, supporting a consistent stage appearance and smooth movement between performance areas. Its compact nested structure makes it suitable for projects where installation space is limited, including stages with shallow pits.

Widely used in concerts, press conferences, variety shows, fashion shows, T-stage performances, and immersive theatres, the Telescopic Stage offers flexible stage layouts for different production requirements.



Product Description





The Telescopic Stage is a horizontally moving stage mechanism that increases the usable performance area when required. The platform extends outward from the main stage and retracts when the additional area is no longer needed.

Depending on the project design, the platform can extend in one direction or two directions. It can be configured to extend from the front or side of the main stage, helping create extended performance areas, runway stages, and closer interaction between performers and audiences.

The system features a steel supporting structure, a controlled extension mechanism, and a platform surface designed to match the main stage finish. The operating system can support adjustable running speed, precise positioning, and preset operating sequences.

For projects requiring coordinated stage movements, the extension platform can be integrated with lifting platforms and the stage control system.





Key Features



Flexible Stage Extension: Extends the main stage forward or sideways to increase the usable performance area.

One-Way or Two-Way Extension: Supports different extension arrangements according to project requirements.

Smooth Movement: Designed for stable extension and retraction with controlled starting and stopping.

Precise Positioning: Supports accurate positioning to meet different stage layout requirements.

Stable Steel Structure: Provides load-bearing support for the specified performance and equipment loads.

Compact Nested Design: Occupies relatively little space and is suitable for installations with limited pit depth.

Low-Noise Operation: Helps minimize mechanical noise during performances.

Adjustable Speed: Supports continuous speed adjustment, point-by-point fine-tuning, and preset operating programs.

Multiple Safety Protections: Can incorporate travel limits, anti-collision protection, overload protection, emergency stop, and power-failure self-locking.

Anti-Slip and Flame-Retardant Surface: The platform finish can be selected to meet project requirements and coordinate with the main stage decoration.

System Integration: Can be connected with lifting platforms and the stage control system.



Typical Applications



Concerts and Live Performances

Extends the stage toward the audience, creating additional performance space and bringing performers closer to spectators.

T-Stage and Runway Shows

Forms an extended runway or T-shaped stage configuration for fashion shows, artist entrances, and visual presentations.

Variety Shows and Television Productions

Allows the stage layout to change according to different program requirements, supporting flexible performance arrangements.

Press Conferences and Corporate Events

Provides additional presentation space for speakers, product displays, and event activities when required.

Immersive Theatres

Extends the performance area toward the audience to support closer interaction and a more immersive experience.

Multi-Functional Performance Venues

Allows the same venue to accommodate different stage layouts without permanently increasing the main stage area.



System Configuration

The Telescopic Stage can be configured according to the venue layout, required extension distance, rated load, and control requirements. Depending on the project, the system include:

Extension Platform: The moving stage surface that provides additional performance space.

Steel Support Structure: Supports the platform and the specified operational load.

Extension and Retraction Mechanism: Drives the platform horizontally between its retracted and extended positions.

Drive and Control System: Controls movement, running speed, stopping position, and preset operating sequences.

Safety Protection Devices: May include travel limit switches, anti-collision protection, overload protection, emergency stop, and power-failure self-locking.

Platform Surface Finish: Anti-slip and flame-retardant finishing options designed to coordinate with the main stage.

Stage Control Integration: Enables coordinated operation with lifting platforms and other stage machinery where required.

The final system configuration should be determined by the platform dimensions, extension stroke, rated load, available installation space, and project-specific operating requirements.



Technical Specifications





Parameter

Description

Product Name

Telescopic Stage

Movement Type

Horizontal Extension and Retraction

Extension Direction

Forward / Sideways, According to Design

Extension Configuration

One-Way / Two-Way

Extension Stroke

Customized According to Project Requirements

Platform Dimensions

Customized

Extension Width

Customized

Rated Load

To Be Determined According to Project Requirements

Running Speed

Customizable

Positioning Accuracy

Customizable

Speed Control

Continuous Adjustment, Fine-Tuning, and Preset Programs

Main Structure

Steel Structure

Platform Surface

Anti-Slip and Flame-Retardant Finish Options

Safety Protection

Travel Limits, Anti-Collision, Overload Protection, Emergency Stop, Power-Failure Self-Locking

System Integration

Lifting Platform and Stage Control System

Installation Space

Designed According to Venue Conditions



Safety Design

Safety is an essential consideration in the design and operation of a horizontally extending stage platform. The system can be configured with multiple protective functions to support controlled movement and reduce operational risks.

Travel Limit Protection: Helps prevent the platform from moving beyond its defined operating range.

Anti-Collision Protection: Can be configured to reduce the risk of collisions with surrounding structures or equipment.

Overload Protection: Helps protect the drive system when the operating load exceeds the configured limit.

Emergency Stop: Allows the operator to stop the system when necessary.

Power-Failure Self-Locking: Can help prevent unintended movement following a power interruption, depending on the selected mechanical design.

Stable Supporting Structure: Designed to carry the specified load within the system's rated capacity.

Anti-Slip Platform Surface: Helps provide a suitable walking and performance surface.

Controlled Extension and Retraction: Supports smooth movement and accurate positioning during operation.

The final safety configuration should be confirmed according to the engineering design, installation environment, applicable requirements, and operating procedures.



Performance and Operational Advantages





Expanded Performance Area

The platform extends the main stage forward or sideways, providing additional space without requiring the entire stage to be permanently enlarged.

Enhanced Audience Interaction

By extending toward the audience, the platform can reduce the physical distance between performers and spectators, creating a more engaging performance experience.

Flexible Stage Layouts

The platform can form extended performance areas and runway-style configurations, helping venues adapt to different productions and event formats.

Efficient Stage Conversion

The platform extends and retracts as required, allowing the performance area to be adjusted for different programs.

Compact Installation Design

The nested structure helps reduce the space occupied by the mechanism when retracted and can be suitable for shallow-pit installations, subject to engineering verification.

Coordinated Stage Operation

Integration with the stage control system and lifting platforms can support coordinated movements and more complex stage effects.



Customized Solutions





Different venues require different extension distances, platform sizes, loads, and operating arrangements. The Telescopic Stage can be customized to suit the project layout and production needs.

Customization options include:

Platform Dimensions: Overall platform size and extension width.

Extension Stroke: The required horizontal travel distance.

Extension Direction: One-way or two-way extension.

Rated Load: Designed according to the expected loads from performers, scenery, and equipment.

Running Speed and Positioning: Configured to meet operational and performance requirements.

Platform Surface: Anti-slip and flame-retardant finishes selected to coordinate with the main stage.

Safety Configuration: Options for anti-collision protection, audible and visual alarms, and other safety devices.

Control Integration: Connection with lifting platforms and the stage control system.

For an accurate technical proposal, please provide the stage layout or drawings, platform dimensions, required extension stroke, rated load, available pit depth, preferred extension direction, and intended control method.



FAQ

Q: What is a Telescopic Stage?

A: It is a horizontally moving stage mechanism that extends the performance area from the front or side of the main stage and retracts when additional space is not needed.

Q:  Can the platform extend in different directions?

A: Yes. Depending on the design, it can be configured for one-way or two-way extension and arranged to extend forward or sideways.

Q:  Can the platform be level with the main stage?

A: The platform can be designed to align with the main stage surface in its intended operating positions. The final interface and gaps should be determined during engineering design to meet the venue's safety and installation requirements.

Q:  Is it suitable for a shallow stage pit?

A: The compact nested structure is intended to reduce space requirements. Suitability for a particular shallow pit depends on the required stroke, platform dimensions, drive mechanism, and available installation depth.

Q:  Can the extension speed be adjusted?

A: Yes. The control system can support continuous speed adjustment, fine-tuning, and preset operating sequences. The actual speed range should be confirmed during project design.

Q:  Can it be integrated with other stage machinery?

A: Yes. It can be integrated with lifting platforms and the stage control system. The required linkage functions should be specified during the design stage.

Q:  What information is needed for a quotation?

A: Please provide the stage drawings, platform dimensions, extension stroke, extension direction, rated load, available installation depth, desired running speed, control requirements, and any required linkage with other stage machinery.
