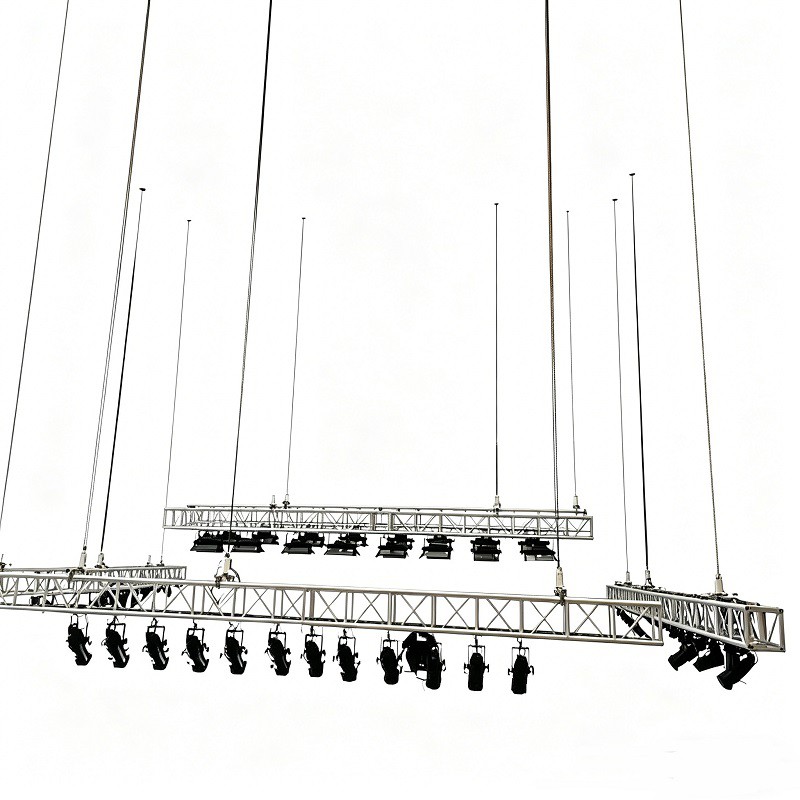

Stage lighting ladder is a supporting and lifting device used to suspend and fix professional lighting fixtures (stage lights, film and television lights, studio lights) in the air (ceiling, truss, stage top), and it can adjust the position, height and angle. It is mainly divided into three types: stage professional type, studio / film set type, and simple ceiling type.
Core Component
|
Drive system |
Motor + Reducer + Dual Brakes (Anti-fall) |
|
Safety devices |
Overhead collision prevention, Rope loosening prevention, Overload prevention, Travel limit protection |
|
Suspension |
Hook, Safety chain / Safety rope (Required) |
|
Cables |
Follow-up tensioning device, Flexible cable |
Operating System
Electric Numerical Control System
This is widely adopted in modern theaters. It can be operated through a computer console, allowing precise setting of the running parameters for each hoist, enabling multi-hoist synchronization and automatic operation. It has high safety and is convenient to operate.
Manual Counterweight System
This is a traditional method still used in some old theaters. It relies on manual pulling of ropes and uses counterweight blocks to balance the hoists. It requires high physical strength and experience from the operators.
Function and Usage Effect
Flexibly adjust the height of the lights to meet the lighting requirements of different plays and scenes.
01
The lights can be raised and lowered during the intermission, allowing for easy adjustment of angles and replacement of accessories.
02
When not in use, raise them to a high position to avoid blocking the scenery and not affecting the performance space.
03
Compared to fixed lighting positions, the lighting has a richer hierarchy and more flexible lighting control.
04
Safe and reliable, avoiding the risks of manual climbing poles to adjust the lights.
05
Operating Mode
Electric hoist lifting
Wired control console control / Wireless remote control
Point-and-pull fine adjustment, allowing hovering at any height
Synchronous control of multiple units
Emergency manual release device
