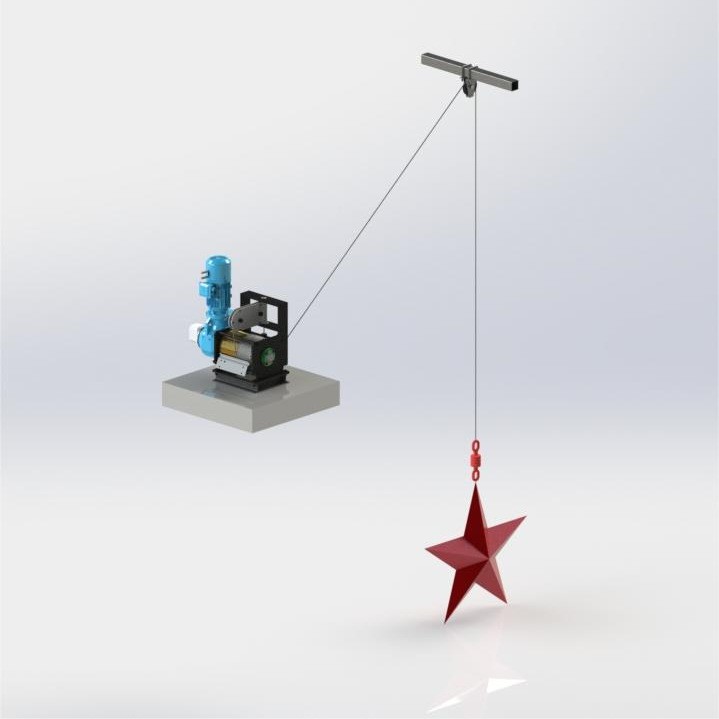

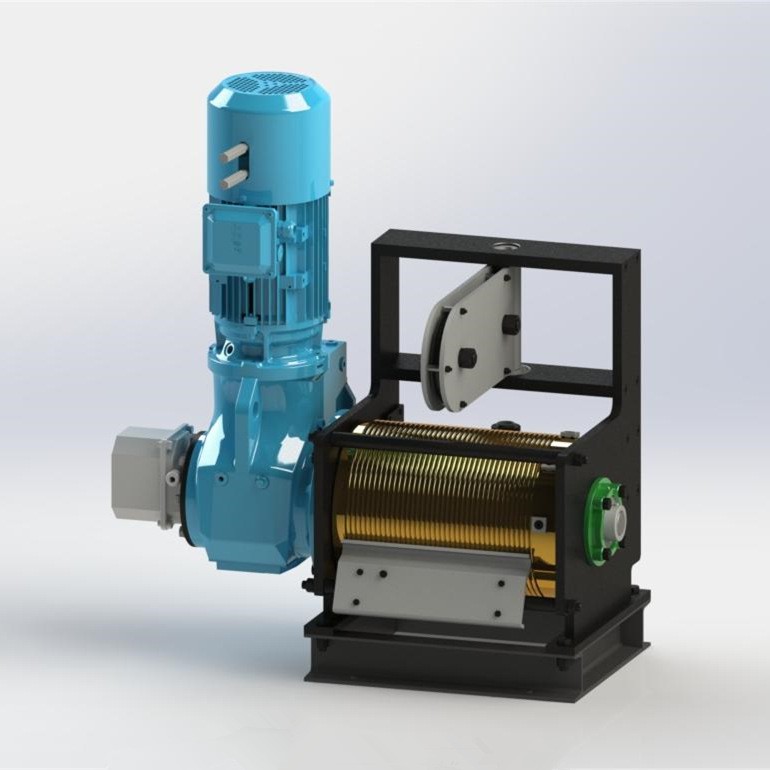

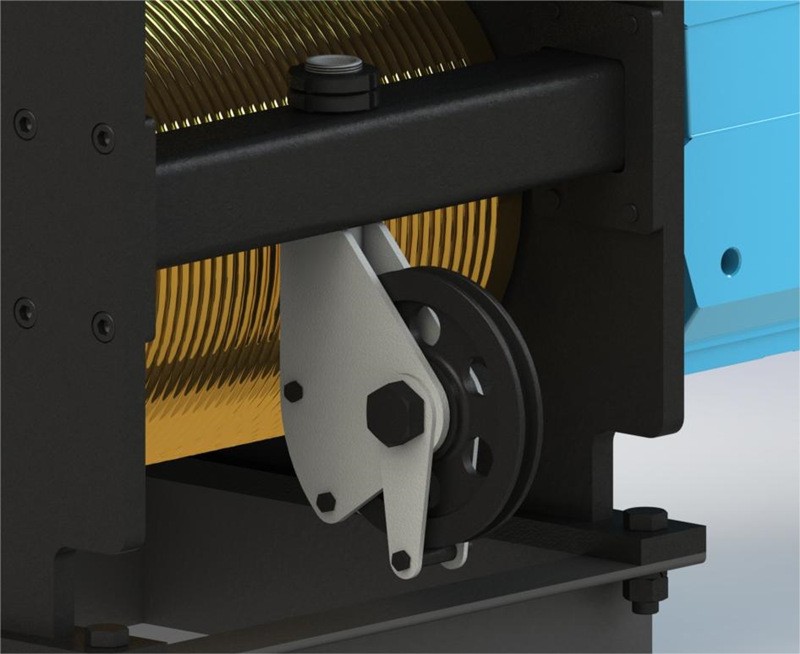

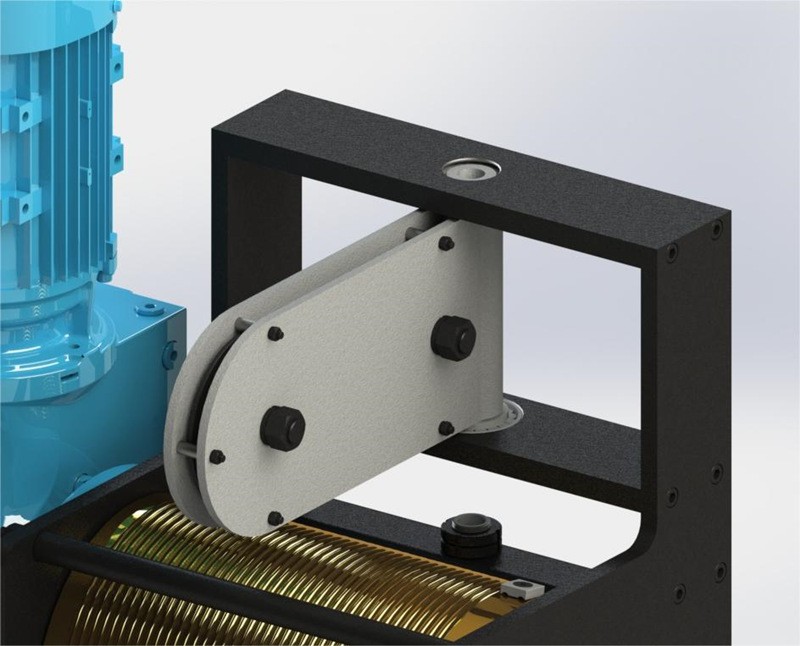

The single point hoist stage is an equipment installed above the performance venue, which uses a single suspension point to lift object. It is composed of dual brake motors, reducers, drums, self aligning rope swing arm devices, output universal corner wheels, disorderly rope detection, limit positions, and other parts. The motor is driven by a reducer to rotate the drum, which in turn winds and unwinds the steel wire rope. The vertical movement is achieved through the pulleys at the suspension points. The encoder provides real-time position feedback, and the PLC controls the speed and positioning. Multiple units can operate synchronously / grouped / programmed.
Product Specification
|
Model |
HBDD-250~800 |
|
Load |
2.5~8KN |
|
Distance |
≤30m |
|
Speed |
≤1.8m/s |
|
Applicable wire rope diameter |
6~14 mm |
|
Hanging point number |
One lifting point |
|
Limiting method |
Cam mechanical limit |
|
Equipment size |
L850mm*W450mm*H950mm |
Installation Method
Horizontal installation, the output universal wheel can be hung vertically downwards or horizontally, used in conjunction with anti rotation steel wire rope.
Application
Single point hoist stage are essential equipment on modern stages, used to raise and lower stage lighting, curtains, and set pieces. The appropriate motor power and number of lifting points are selected based on the stage opening dimensions and the load to be lifted. Single point hoist stage is used in theater, concert, show venue, broadcast studio, trade shows, business launches ect.
Technology Firs
Single Point Hoist Stage
Single lifting point, flexible, precise, movable, suitable for fine control of small loads.
Ordinary Electric Hoists
Long pole, multi-point synchronization, large load, used for entire curtain / scene.
Different Requirements In Different Scenarios
Professional Theater
High requirements for invisibility; High precision positioning; High reliability and redundant design; Large-scale configuration.
Large-Scale Performance Events
High speed; Multi-machine collaborative control; Rapid installation and disassembly; Intelligent linkage.
Multifunctional Hall
Medium load capacity; Simple and easy to operate; Aesthetically pleasing and harmonious in appearance.
We offer multi-scenario and multi-function customization. Please feel free to contact us at any time for further discussion.
