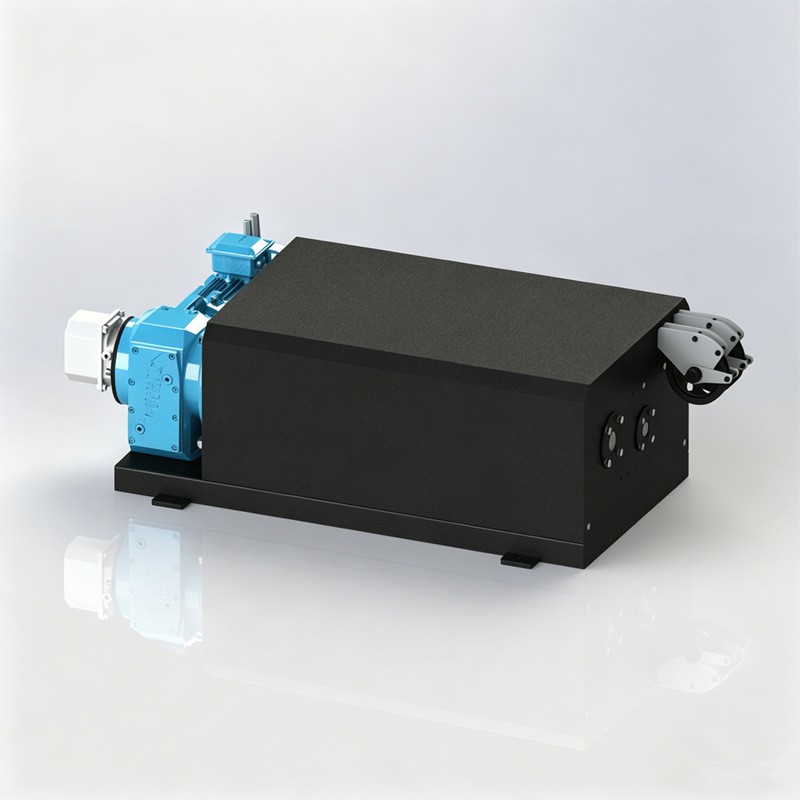

Double Point Hoist

Stage double point hoist is a mechanical device used in theaters or on performance stages to suspend and raise or lower scenery, lighting, and props. Its distinctive feature is the presence of a drive point at each end of the hoist boom (hence the term "dual-point"). Through the synchronized operation of motors and a wire rope system, the hoist maintains horizontal stability during lifting and lowering, offering strong load-bearing capacity and smooth operation. Compared to single-point hoists, it effectively reduces off-center loading and sway, enhancing safety and precision. It is suitable for professional stage environments that require high positioning accuracy and the ability to handle heavy loads. The stage double point hoist is an efficient, stable, and automated mechanical equipment specially designed to meet the lifting needs of performance venues such as theaters and bars. It is composed of dual brake motors, reducers, drums, and rope arrangement devices for detecting and limiting ropes.

The double-point hoist is equipped with multiple safety protections. Its design incorporates a high-quality rope-guiding system, universal rope-pay-off pulleys, a rope-entanglement detection mechanism, and cam-operated mechanical limit switches. These features ensure reliable operation of the equipment.

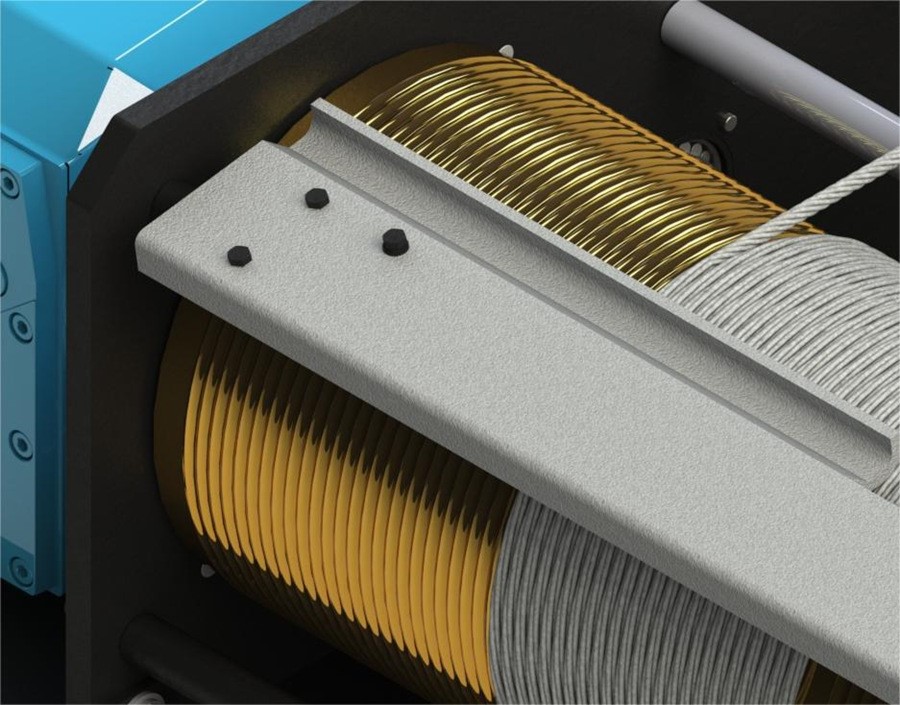

High Quality Rope Arrangement System

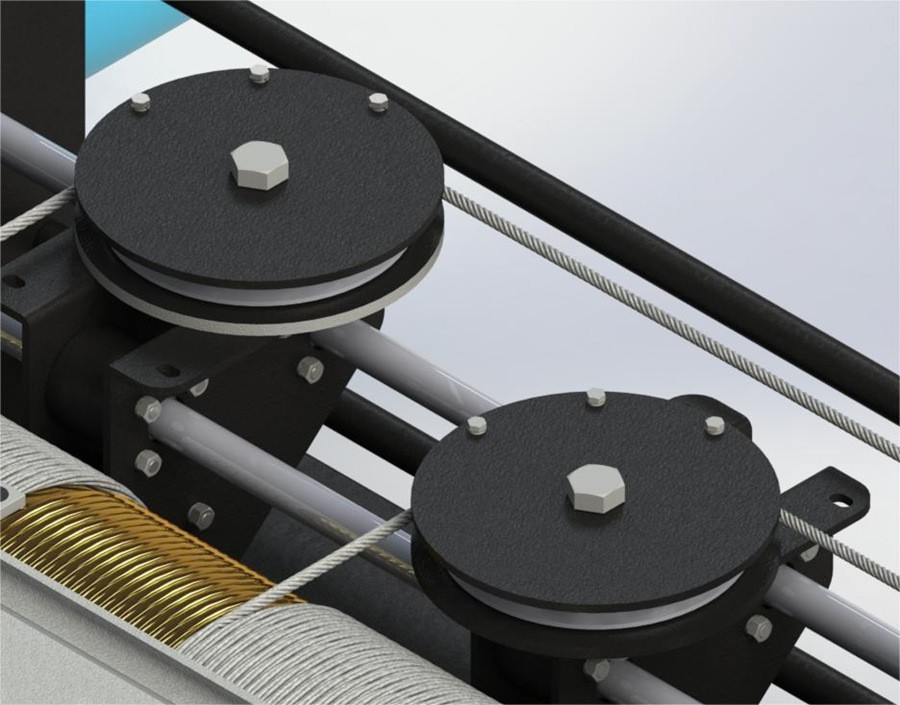

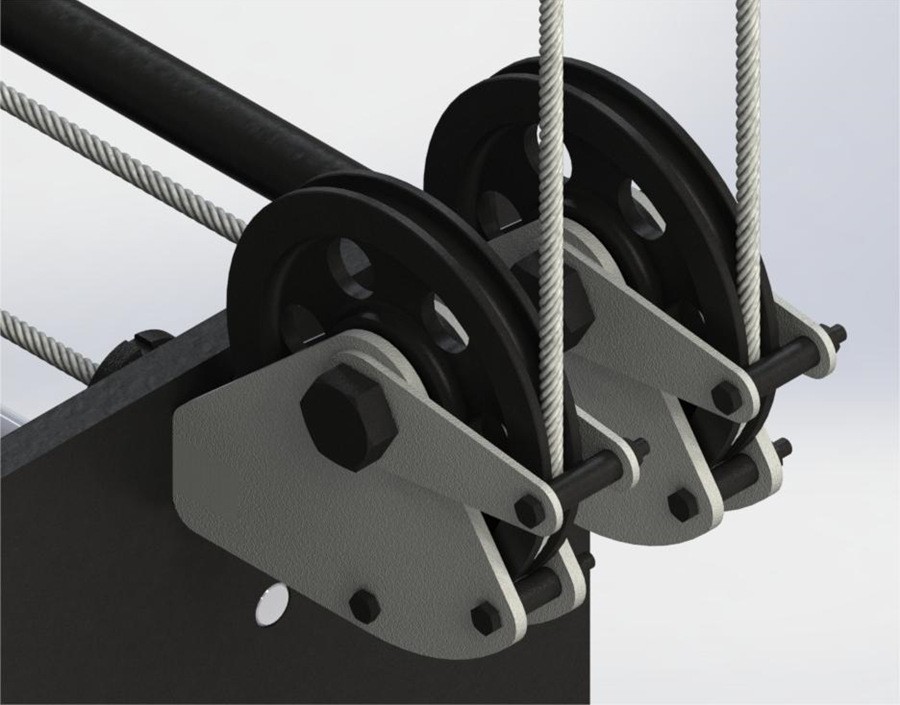

Universal Rope Pulley

Random Rope Detection Mechanism

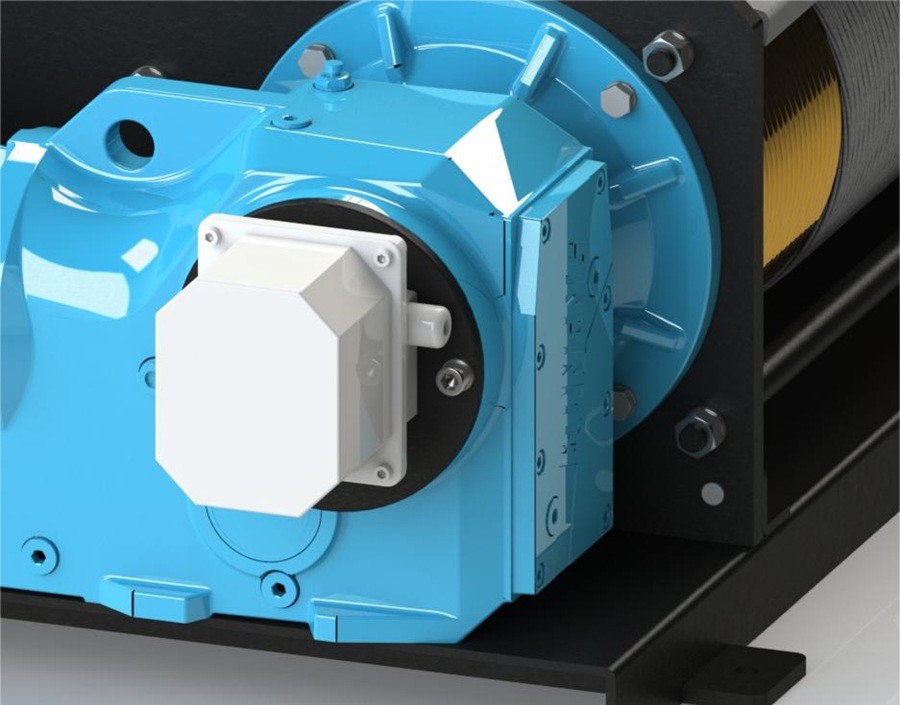

Cam Mechanical Limit

Installation Method



The stage double point hoist is equipped with mounting holes, which can be used for both horizontal and vertical positions, marking installation convenient. The universal rope wheel covers all rope ways. Suitable for lifting props in some theaters; The aerial flying effect used for vertical ascent and descent.
