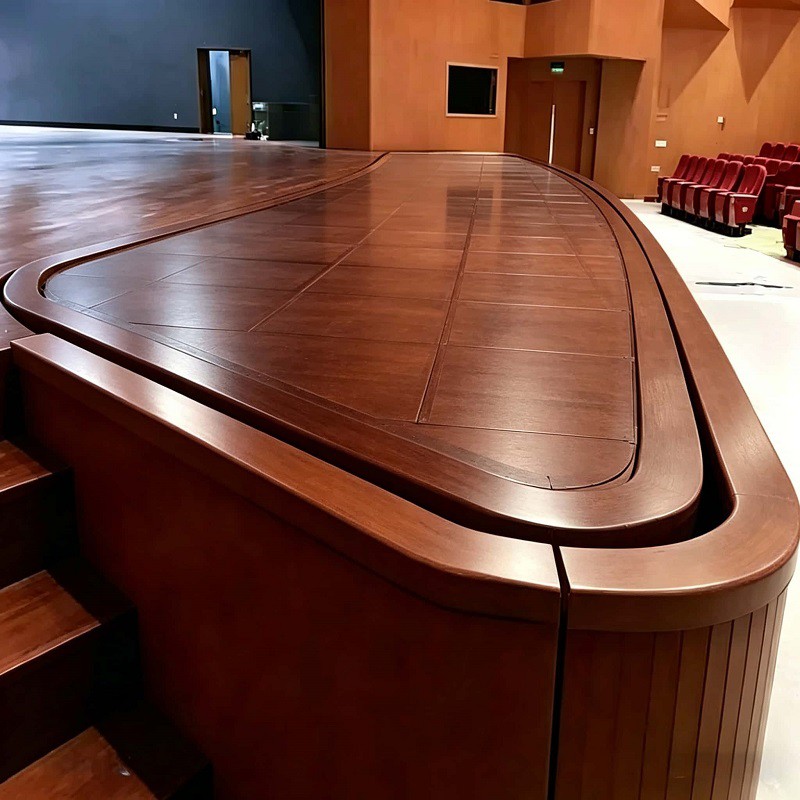

Orchestra pit parapet lift are professional stage machinery used in performance venues such as theaters and concert halls. They are installed between the lift platform and the auditorium and can be lifted along with the platform and controlled independently. Their main functions include safety protection, space division, and acoustic optimization.
Core Functions And Modes
Stage pit mode (band performance)
The orchestra pit lift is lowered to the performance position (approximately -2.4m), the orchestra pit parapet lift are raised to the height of the stage surface, forming a safety barrier to prevent audience/items from falling and blocking the direct spread of the music.
Audience seating expansion mode
The stage pit is raised to be level with the audience seating, the orchestra pit parapet lift are simultaneously lowered, and the stage pit area becomes a temporary audience seating area, expanding the capacity.
Stage expansion mode
The stage pit is raised to the stage plane, the orchestra pit parapet lift are raised, forming a forward extension area of the stage, increasing the performance space.
Structural composition
Main Structure
High-strength steel structure, ensuring rigidity and stability.
01
Drive System
Commonly used gear rack, electric winch or screw drive, running smoothly, low speed and precise.
02
Guiding System
Linear guide rails or column guidance, ensuring vertical lifting without deviation.
03
Decorative Surface Layer
Wood veneer, metal plates, etc., unified with the interior decoration style of the theater.
04
Control System
Independent electrical control, interlocked with the orchestra pit lifting platform / independent dual mode, with travel limit and overload protection.
05
Design Key Points
Safety
Anti-collision, anti-fall, emergency stop, overload protection.
Acoustics
The structure and surface design effectively prevent sound from escaping, ensuring the sound quality in the auditorium.
Aesthetics
Mainly featuring arcs, seamlessly connecting with the lip of the stage and the curve of the auditorium.
Interlocking control
It can be linked with the stage lift platform or adjusted independently.
Customized Information
This product is a customized project. The specific design plan needs to be tailored according to the information you provide about the venue. If you need any assistance, please feel free to contact us at any time. We will have a dedicated person to coordinate with you.
